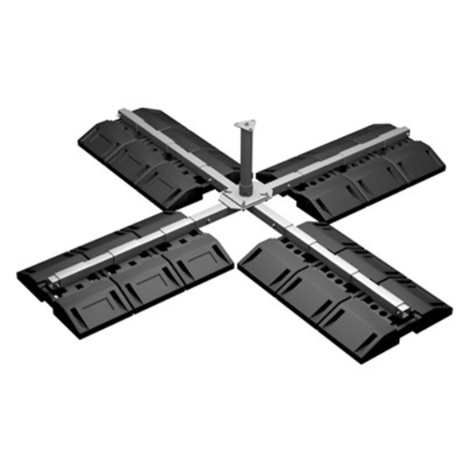

G-Force IM200 Portable Deadweight Roof Anchor Device

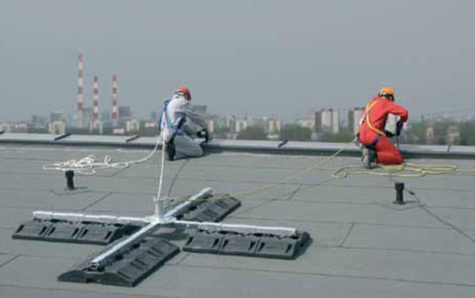

The G-Force IM200 Portable Deadweight Roof Anchor Device provides a practical anchorage solution for working at height on flat roofs where suitable permanent anchor points are unavailable. Designed for fall protection and work restraint applications, it is suitable for roof maintenance, inspections and other tasks requiring secure anchorage.

Featuring a durable fire zinc-galvanised steel chassis, the IM200 is supplied with 12 heavy-duty rubber weights, each weighing 30kg, to provide the required deadweight anchorage. Its portable design makes it a versatile option for temporary roof access and maintenance work, subject to the manufacturer's installation and usage instructions.

The IM200 is designed for use by up to two people, with a maximum user weight of 100kg per person. It can be used for work restraint or fall arrest applications, provided the intended configuration meets the manufacturer's specified requirements.

Key Features and Benefits

• Portable Deadweight Design: Provides an anchorage solution for flat roofs where suitable permanent anchor points are not available.

• 12 Heavy-Duty Rubber Weights: Supplied with 12 individual weights, each weighing 30kg.

• Durable Steel Construction: Features a fire zinc-galvanised steel chassis for durability.

• Two-Person Capacity: Designed for use by up to two people, subject to the manufacturer's specified conditions.

• Versatile Fall Protection: Suitable for restraint and fall arrest applications when configured in accordance with the manufacturer's instructions.

• Standards Compliance: Conforms to EN 795 Class E.

Product Specifications

• Brand: G-Force

• Model: IM200

• Product Type: Portable Deadweight Roof Anchor Device

• Chassis Material: Fire zinc-galvanised steel

• Weights Supplied: 12 heavy-duty rubber weights

• Weight per Unit: 30kg

• Total Weight of Supplied Weights: 360kg

• Intended Applications: Fall protection and work restraint on flat roofs

• User Capacity: Up to two people

• Maximum User Weight: 100kg per person

• Standard: EN 795 Class E

Important: Always install, configure and use the IM200 in accordance with the manufacturer's instructions and applicable fall protection requirements. Confirm its suitability for the specific roof surface and intended application before use.
